Software Development

  Assignment 3 Guide

Implementation Phase - Creating Input and Output Forms

Introduction

Create  the Program Forms

Name all Your Input & Output Controls


Introduction

Objectives

This guide  will help you to: -

   create your input and output forms in VB - part of assignment 3

If you need to you should print out the following two assignment documents.

Assignment Scenario

Assignment 3: Implementation


Create the Program Forms

All of the tasks in this assignment require that you produce program code in a well organised, well annotated way, with good names for your variables and form controls.  Also, you must produce a user friendly input and output screens,

So, the first thing you should do is to create the input and output form.

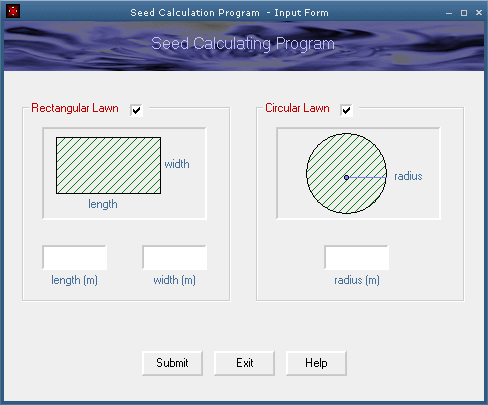

As an example - here is my unfinished input form.

 and my unfinished output form.


~~Activity~~

Activity A

Click the link to open and run my unfinished Seed Calculation program



Your Task

Open up Visual Basic and create your user interface, following your form design sketches from your previous assignments.  Remember, for assignment 1 part d you sketched your forms by hand.  For assignment 2 you should have reproduced your sketches in Word.

When you have finished creating your forms, print them out.

Write your name at the top of the page and a heading such as Assignment 3: Input form


Name your Input & Output Controls

Now you have now created your input and output forms, your next task is to give each of your input and output controls a proper name.

In assignment 2 part b you were asked to put names for your controls on your input and output form drawings.  If you did complete this task then it will be easy for you to name your controls in VB.  If you didn't do this, I suggest you start this task by making a quick list of good names for you controls.

Remember, there are naming conventions to follow when naming controls.  Each controls start with different three letter prefix...

Control Prefix

Form frm
Command Button cmd
TextBox txt
Label lbl
CheckBox chk
OptionButton opt
Frame fra
Shape shp
Line lin

Timer

tmr

When naming a control, you need to use the three letter prefix first, then the rest of the name should relate to the function of the control - it should describe something about it, so when you come across the name in your code, you know exactly which control it is.

~~Activity~~

Activity B

Try this flip card activity to see if you can remember the correct prefixes

Here as some naming examples

Examples:

  1. What would you name command button that ends a program when clicked?

cmdExit    or    cmdEnd    or something similar

  1. What would you name a text box that expects a user to type in their first name?

txtFirstName    or something similar

  1. What would you name a label that displays the height of a room

lblRoomHeight    or something similar

~~Activity~~

Activity B

What do you think I named the command buttons shown in the picture?


Answer



What about the controls on the form below?




Answer

Now you need to consider how to name the controls on your own form. My advice is only to name any controls you think you will refer to in your code. This is likely to be all command buttons, textboxes, checkboxes etc.  Controls you may not need to name are labels and frames, unless of course you will need to refer to any of them in your code.

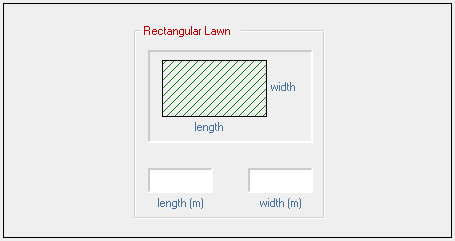

Thinking of good names for controls on your seed calculation program will take some thought.  To start you off, here's how I named some of the controls on my form.

... can you guess the names first?

Answer

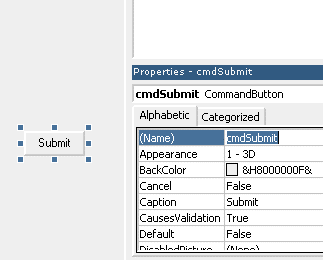

Can you remember how to change the names of controls?  You have to select that control and then type in the name you want in the properties window.  Look at the picture below showing the name of the command button being set.

Your Task

Now it's your turn to name all your input and output controls:-

When you have finished creating your forms, print out the form code.  You can do this by clicking Print and then ticking Form in the Print box that appears.

Write your name at the top of each page and a heading such as Assignment 3: Control Names


Have you finished all the tasks and handed them in?
If so - well done.
