Central Processing Unit

The Central Processing Unit (CPU) is the control center of a computer. It carries out all instructions sent to it by the operating system or applications software. Lets see how it carries out its job.

CPU Overview

Control Unit

ALU

Registers

Instruction Set

Instruction Cycle


CPU Overview

The CPU is the circuitry that receives and carries out instructions involving operations on data. it receives instructions and data from RAM, carries out those instructions and sends the results back to RAM

The CPU circuitry contains two main units that carry out the necessary actions to execute the instructions from RAM and several memory locations where data/instructions are held temporarily while the data is being processed.  These are the...

Control Unit: directs and coordinates the flow of data.

Arithmetic/Logic Unit: executes seven basic mathematical and logical operations.

Registers: temporary memory locations.

Lets explore each in more detail.





Control Unit

The control unit coordinates and directs all processing.  The control unit uses an instruction pointer, which is an address of the location in RAM where the next instruction is stored.  To carry out an instruction, the control unit first checks the instruction pointer to find the location of the instruction in RAM.  The instruction is transported from this address in RAM and stored in the control unit's instruction register.

The control unit then interprets the instruction. Then it sends a signal along the data bus to fetch data from RAM and another signal to the ALU to instruct it about the process that has to be carried out on the data.

You can imagine the control unit as a director on a movie set.  It..

Reads/interprets instructions

Controls the flow of data to the ALU

Maintains the timing of operations


ALU

The ALU or Arithmetic Logic Unit carries out

Arithmetic operations

addition

subtraction

as well as multiplication and division.



Logical & Comparison Operations

comparisons of two binary words at a time such as

num1 < num 2

as well as     <=    >    >=     =

and also Boolean comparison such as     AND    OR    NOT



and the results are stored in the accumulator




The Registers

Registers are temporary storage areas within the CPU that are used when data must be manipulated or instructions carried out. There are usually at least four registers, and often more.  The most common registers are:

Accumulator: holds the results of calculations.

Buffers: holding area for information taken from or to be sent to memory.

Address: holds the location of information or instructions the computer needs for processing.

General Purpose: used for multiple functions to include arithmetic or addressing.

Registers each hold one word of data or one address.  The word length (number of bits)  of different computers vary.   Early computers had 8 or 16-bit registers, later computers have 32-bit registers and modern ones have 64-bit registers.


Instruction Set

Each family of of processor has a specific instruction set.  The instruction set tells the processor what operation to carry out.  There are two parts to an instruction set; the op code and the operand

op code: this is short for operation code and is a command for an operation such as addition, subtraction, comparison, etc

operand: this is the data to be operated on.

Let's look at an example

This means move the value stored in the accumulator to the memory location with address M1

Here's another example



This means add the value stored in memory location M1 to the value stored in memory location M2.  In this case we have one op code and two operands.

The table below lists an microprocessor instruction set.  Perhaps you should consider how remarkable it is that a computer can carry out all the operations you are familiar with such as word-processing, displaying images on the monitor, etc. with what seems to be a small set of instructions to work with.

Op Code

Description

Example

CLA

clears the accumulator to 0

CLA

CMP

compare the values in two register for equality.  If they are equal put 1 in the accumulator, otherwise put 0

CMP  R1 R2

INP

input the given value to a specific memory location

INP 3 M1

JMP

jump to the instruction at the given memory location

JMP P1

JPZ

jump to the given memory location if the accumulator holds a zero

JPZ P2

JPN

jump to the given memory location if the accumulator does not hold a zero

JPN P1

HLT

halt execution of the program

HLT

ADD

add the values from two given registers and place the result in the accumulator

ADD R1 R2

SUB

subtract the values from two given registers and place the result in the accumulator

SUB R2 R3

MUL

multiply the values from two given registers and place the result in the accumulator

MUL R1 R2

DIV

divide the values from two given registers and place the result in the accumulator

DIV R3 R2

INC

increase the value in the accumulator by 1

INC

DEC

decrease the value in the accumulator by 1

DEC

MAR

move the value from the accumulator to the given register

MAR R2

MAM

move the value in the accumulator to the given memory location

MAM M1

MMR

move the value from the given memory location to the given register

MMR M1 R1




Instruction Cycle

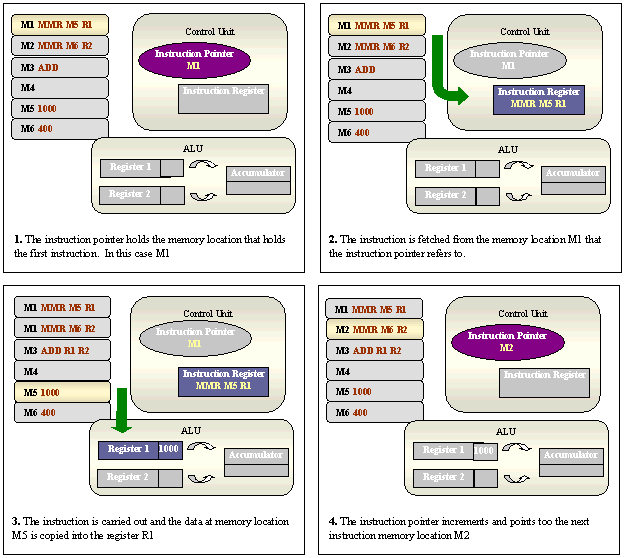

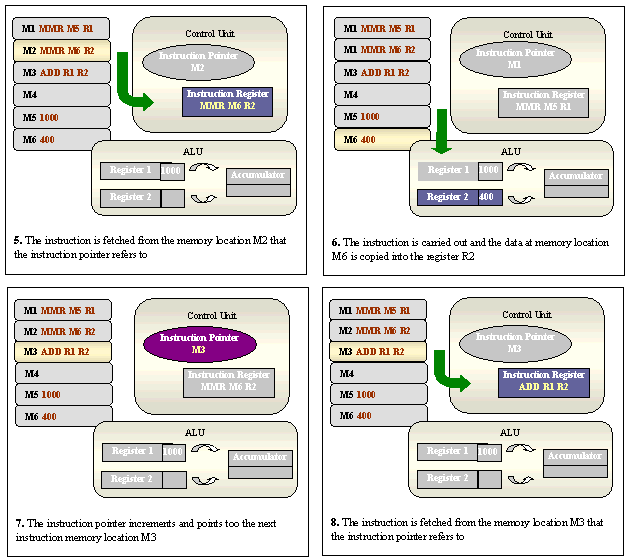

We have examined how the ALU unit performs arithmetic and logic operations and how the control unit gets instructions from RAM and instructs the ALU on which operation to carry out.  Now let's look at the whole instruction cycle.
